ELECTRIC VEHICLE



PROPOSAL INPUT DATA

Different drive condition for calculation main components:

A. climb from basement garage, or start with max.acceleration

B. drive up a hill, or continual drive with small acceleration

C. drive up a gentle slope, or continual drive with small acceleration right to maximal speed

D. drive steady speed on the flat road near maximal speed

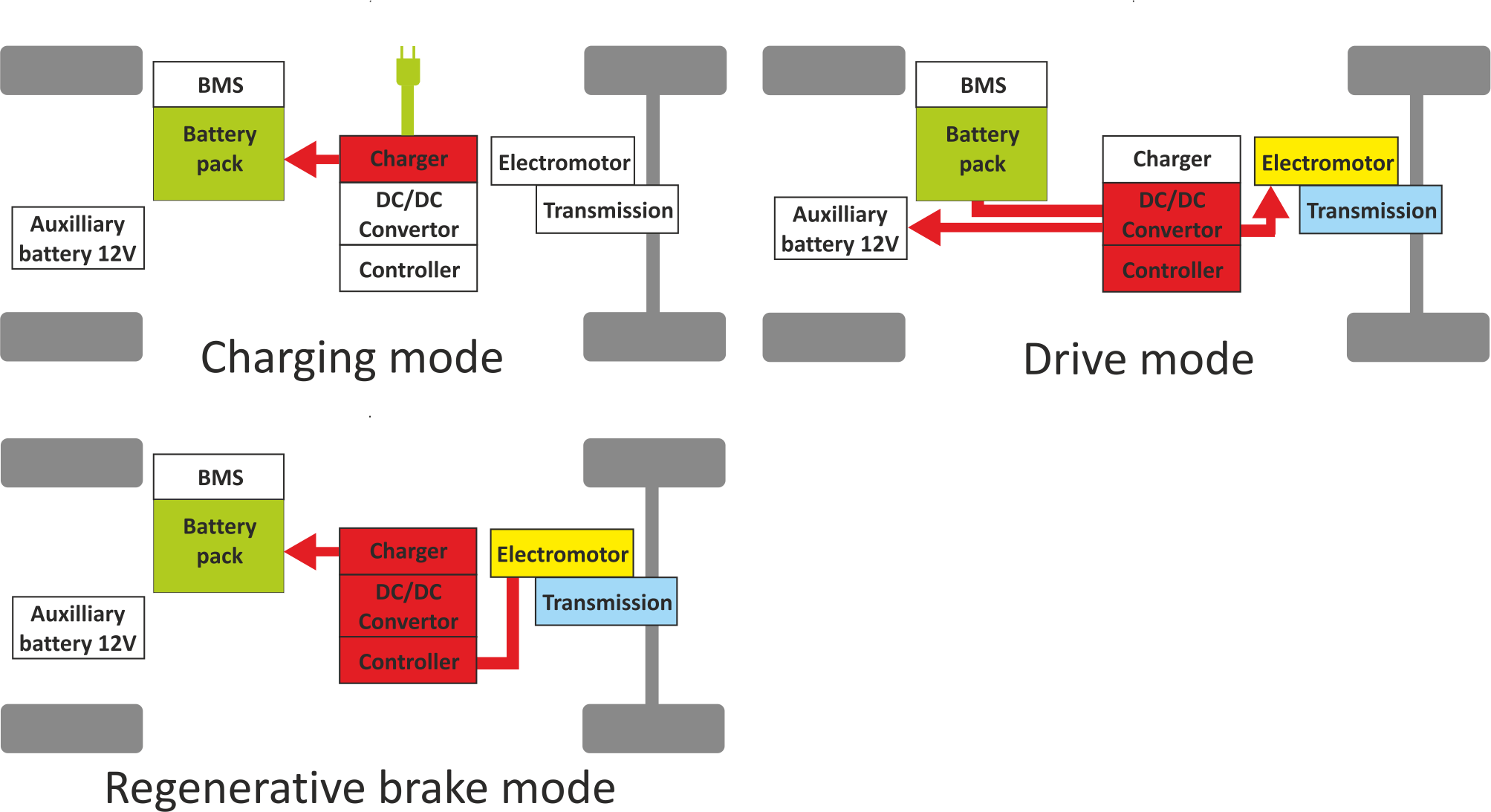

DESIGN OF DRIVE-LINE SYSTEM



DRIVE LINE

electromotor..........AC motor AKOE 15/30kW, 80V

controller..............Curtis 1238

batteries...............Thunder Sky LiFeYPO4, 300Ah



CHASSIS

front suspension....McPherson, independent wheel type,disc brake

rear suspension.....beam axle, leaf spring, drum brake

FRAME

steel tube space frame



BODY

steel / plastic

WEIGHT

gross vehicle weight..........750kg (plan)

curb weight......................550kg (plan)



SPEED

maximal speed    .............90km/h (plan)

drive range (with regenerative braking).... .160km (plan)



DIMENSIONS





BODY - 1st Concept design
